Eradicating nitrogen from slurry includes reworking it right into a gaseous stream of N2 (dinitrogen, an inert gasoline that composes roughly 78% of the environment). This transformation could be carried out by organic strategies, that are the commonest, or by physical-chemical strategies, akin to catalytic oxidation, with restricted software and is within the experimental part for slurry.

Organic elimination of ammoniacal nitrogen

On this system, which is utilized to the liquid fraction of slurry, ammoniacal nitrogen (NH4+) is reworked into molecular nitrogen (N2). This organic transformation is carried out by combining two processes catalyzed by two various kinds of microorganisms.

  • Nitrification (N): cardio autotrophic microorganisms, which receive carbon from CO2 or from the bicarbonate contained within the slurry, convert NH4+ into nitrites (NO2) and nitrates (NO3)
  • Denitrification (DN): one other group of heterotrophic microorganisms converts NO2 and NO3 into N2 gasoline, utilizing natural matter as a supply of carbon and power.

Determine 1 exhibits the traditional NDN (nitrification-denitrification) system, during which first the denitrification reactor (DN) after which the cardio nitrification reactor (N) should be organized, with recirculation to convey nitrates and natural matter into contact within the DN reactor. If it had been organized the opposite manner round, the cardio micro organism would devour the natural matter and it will not be out there for denitrification.

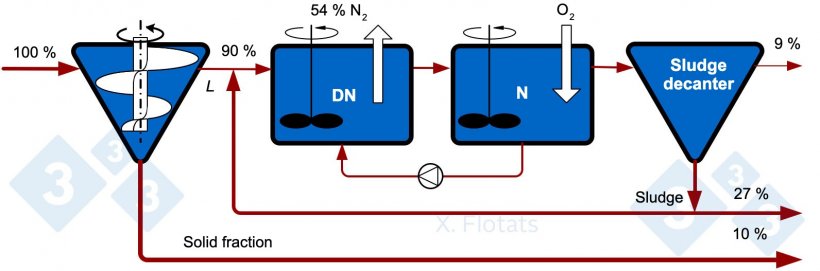

Figure 1. Diagram of the classical NDN system for the biological removal of nitrogen. The indicated values correspond to reference percentages of N distributions assuming a separator efficiency of 10%.

Determine 1. Diagram of the classical NDN system for the organic elimination of nitrogen. The indicated values correspond to reference percentages of N distributions assuming a separator effectivity of 10%.

The effectivity of the system is extremely variable all year long since micro organism (particularly nitrifying micro organism) are very delicate to temperature modifications. A effectively operated system, regulated in line with temperature and variations within the composition of the slurry, can have a median nitrogen elimination of 60% within the type of N2 with respect to the nitrogen within the liquid fraction separated within the preliminary S/L separator. It is not uncommon for a fraction (round 3-7%) of the nitrogen to flee within the type of NH3 and N2O, which should be prevented.

The system proven in Determine 1 has many potential variations. For instance, recirculating the sludge to the header to supply extra natural matter for denitrification and get well a part of it within the stable fraction; or utilizing an SBR (sequencing batch reactor), during which the 2 processes are carried out in the identical reactor, in addition to the decanting of sludge, following an automatic time sequence. On this case, the method is discontinuous and a earlier buffer tank is critical to control the continual manufacturing of slurry and the discontinuous therapy. Determine 3 exhibits a diagram of this technique, which is easy from a civil works standpoint however extra advanced as a result of want for automation.

An air compressor or a floor agitator is required for oxygen enter (see Determine 2), with the resultant electrical consumption. Lowering this consumption could be achieved by working in such a manner that nitrification produces nitrites and never nitrates, and denitrifying from nitrites, additionally decreasing the consumption of natural matter, which could be very useful in slurry because of its low C/N ratio.

One innovation the system has is autotrophic denitrification, by way of autotrophic anammox micro organism, during which they produce N2 from NH4+ and NO2. This suggests that nitrification needs to be partial (PN), solely changing about 50% of the ammonium to nitrites (even decrease O2 and power consumption), and that no natural matter can enter the method because the micro organism are autotrophic.

If the simply biodegradable natural matter had been to achieve the anammox reactor, it will facilitate the expansion of heterotrophic micro organism, the DN denitrification micro organism, quicker than the anammox micro organism. This technique has its scope of software when the natural matter has been beforehand eliminated by anaerobic digestion and biogas manufacturing.

Via organic nitrogen elimination applied sciences, a fertilizer useful resource is misplaced, at the price of consuming power, which works towards the rules of sustainability and round economic system. Because of this, it’s not thought-about a greatest out there know-how (BAT) for brand new livestock farms. Nonetheless, it may be thought-about a know-how for emergency plans to fight the nitrate drawback till there are stable markets established for the merchandise recovered from slurry.

Ammoniacal nitrogen will also be eliminated by catalytic oxidation. This technique is within the experimental part and consists of oxidizing ammonia to N2. Relying on the selectivity of the catalyst, or its diploma of getting old, different types of nitrogen could also be produced, akin to N2O, NO or NO2, the emissions of which should be averted.

Figure 2. Picture of the installation for the biological removal of nitrogen by means of NDN on a swine farm. In the foreground is the denitrification lagoon/reactor and behind it is the nitrification lagoon/reactor, where the aeration system can be seen.

Determine 2. Image of the set up for the organic elimination of nitrogen by way of NDN on a swine farm. Within the foreground is the denitrification lagoon/reactor and behind it’s the nitrification lagoon/reactor, the place the aeration system could be seen.

The NDN system in Determine 1 helps extensions to acquire merchandise that permit the export of the remaining vitamins.

NDN mixed with composting of stable fraction and sludge, for export

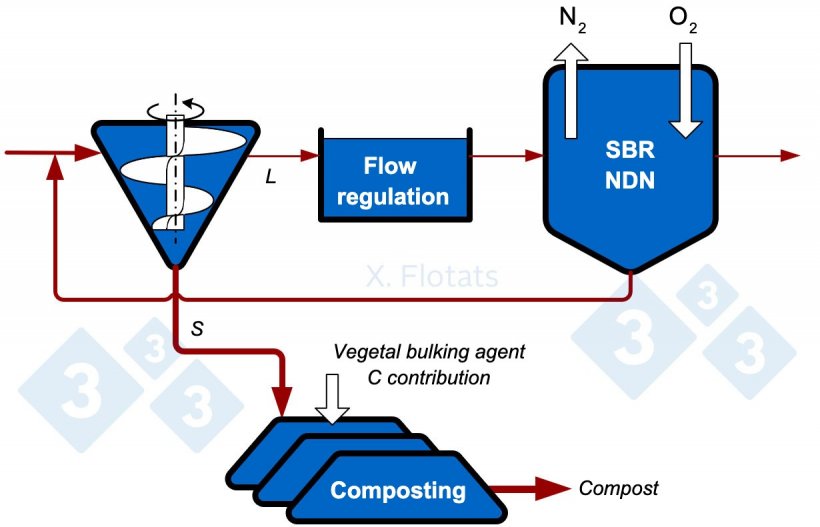

Figure 3. Diagram of a combined NDN system, using SBR, and composting of the solid fraction, with export of the compost and fertigation with the treated liquid fraction.

Determine 3. Diagram of a mixed NDN system, utilizing SBR, and composting of the stable fraction, with export of the compost and fertigation with the handled liquid fraction.

With the approximate nitrogen distribution percentages in Determine 1, 37% is exported as compost and a remaining 9% is left within the handled liquid effluent, which might be used to fertilize close by fields.

With virtually 10 occasions much less nitrogen, it’s potential to make the error of pondering that 10 occasions much less agricultural space might be wanted. As nitrogen focus drops, phosphorus or potassium doesn’t essentially drop by the identical magnitude, and both of those components, or salt or heavy metals, could be limiting components for software. Fertilization ought to all the time be deliberate in line with probably the most limiting part.

NDN mixed with precipitation of phosphorous salts, for export of precipitate and stable fraction, composted or not

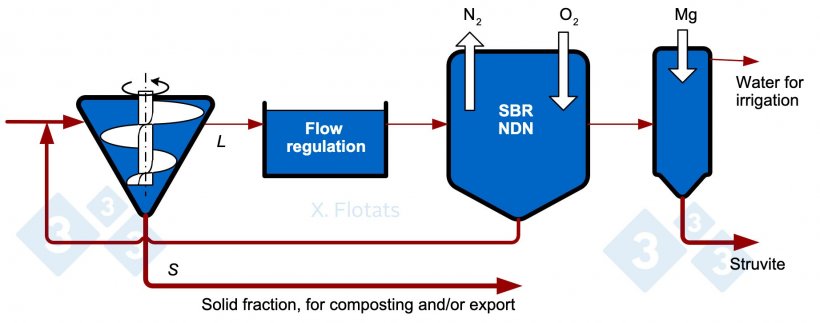

Figure 4. Diagram of a combined NDN system, using SBR reactor, with struvite precipitation, for export together with the solid fraction, composted or not.

Determine 4. Diagram of a mixed NDN system, utilizing SBR reactor, with struvite precipitation, for export along with the stable fraction, composted or not.

If phosphorus is the limiting ingredient after a big a part of the nitrogen has been eliminated with NDN, a phosphorus precipitation unit could be added. Phosphorus could be extracted from the slurry by precipitation methods. It is suggested to use these methods to the liquid fraction obtained from an S/L separation system after having utilized some methodology of decreasing the natural matter content material, akin to NDN or anaerobic digestion, to keep away from contamination. A excessive pH, ≥ 9, is greatest for the 2 processes described under which can lead to volatilization of NH3, which ought to be averted.

Struvite precipitation: Struvite, ammonium magnesium phosphate (MgNH4PO4·6H2O), is taken into account a slow-release mineral fertilizer and has gained significance as a helpful product within the fertilizer market. The earlier elimination of natural matter permits bigger and cleaner struvite crystals. Magnesium is present in low concentrations, so the addition of Mg(OH)2 or MgO is critical. With the N/P ratio of struvite, for each kg of P that precipitates, the N content material of the effluent is lowered by 0.45 kg.

Precipitation of calcium phosphates: If no additional discount of the ammonium focus is desired, the addition of quicklime (CaO) promotes the precipitation of hydroxylapatite (Ca5(PO4)3OH). As with struvite, prior elimination of natural matter prevents or reduces contamination of the product and will increase its financial worth.

NDN mixed with separation by membrane of the handled effluent

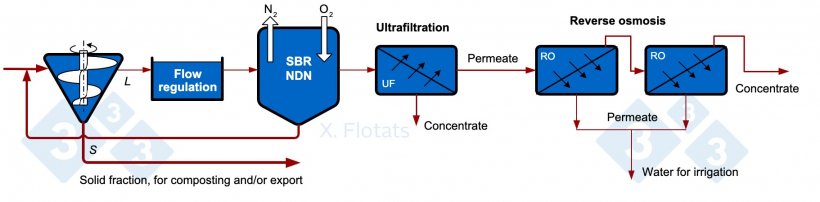

Figure 5. Diagram of a combined NDN system, using SBR, with membrane filtration of the treated effluent, for export of concentrates together with the solid fraction, composted or not.

Determine 5. Diagram of a mixed NDN system, utilizing SBR, with membrane filtration of the handled effluent, for export of concentrates along with the stable fraction, composted or not.

Membrane filtration processes encompass the separation of particles from a liquid effluent in line with their dimension or salinity by way of semi-permeable membranes. Of the various kinds of membrane processes, solely reverse osmosis can focus salts; the others (microfiltration, ultrafiltration, nanofiltration) can solely separate particles or molecules of excessive molecular weight. Reverse osmosis consists of reversing the osmotic move of water (which might go from a dilute medium to a extra concentrated medium) via a semi-permeable membrane by making use of strain, acquiring a permeate (dilute part) and a focus. To keep away from contamination, S/L separation and filtration methods should be utilized previous to the method; subsequently, an ultrafiltration unit has been added in Determine 5. Reverse osmosis can focus greater than 99% of the salts, however small non-ionized molecules, akin to ammonia, can cross via the membrane, in order that the water obtained as a permeate isn’t utterly clear.

The advantage of the system lies in with the ability to valorize the concentrates obtained. On this case, they’ll have a low focus of nitrogen (eradicated within the NDN) and phosphorus (largely separated within the sludge and within the stable fraction), so they’ll have a low worth within the fertilizer market. The ultimate goal, subsequently, will solely be to acquire water with very low salinity.
